Circuit Breaker v0.3.0

Tag: v0.3.0

---

Circuit Breaker v0.3.0

April 3, 2026 · Previous release: v0.2.8

v0.3.0 is a discovery-focused release. The scanner has been significantly upgraded with a built-in OUI knowledge base, smarter host identification, L0 (non-root) scan capabilities, and the first foundations for mobile device awareness. Discovered devices now import into the topology map with automatic relationships and role-aware positioning rather than landing as isolated, unconnected nodes.

---

🔍 Smarter Scanner — OUI Knowledge Base

Circuit Breaker now ships with an on-device OUI knowledge base. Every MAC address found during a scan is resolved to a vendor and cross-referenced against a hostname table built up over prior scans. Results are richer out of the box — no external lookups, no round-trips.

• Vendor name resolved directly from MAC OUI
• Hostname hints carried forward from previous scan results
• Scan ETA replaced with time elapsed — a more reliable indicator during variable- length nmap passes
• nmap progress bar is now visually responsive to actual probe completion

---

🕵️ L0 Scanning — No Root Required

Circuit Breaker can now perform a meaningful Layer 0 network scan without elevated privileges. TCP connect scanning, banner grabbing, and OUI resolution all work under a standard user account. ARP scanning remains opt-in (disabled by default) and still requires NET_RAW on Linux.

---

📱 Mobile Device Detection

Devices advertising randomized MAC addresses — phones, tablets, and laptops in privacy mode — are now flagged as probable mobile devices rather than being silently misidentified as unknown hardware. Mobile discovery behavior is configurable in Settings → Discovery.

---

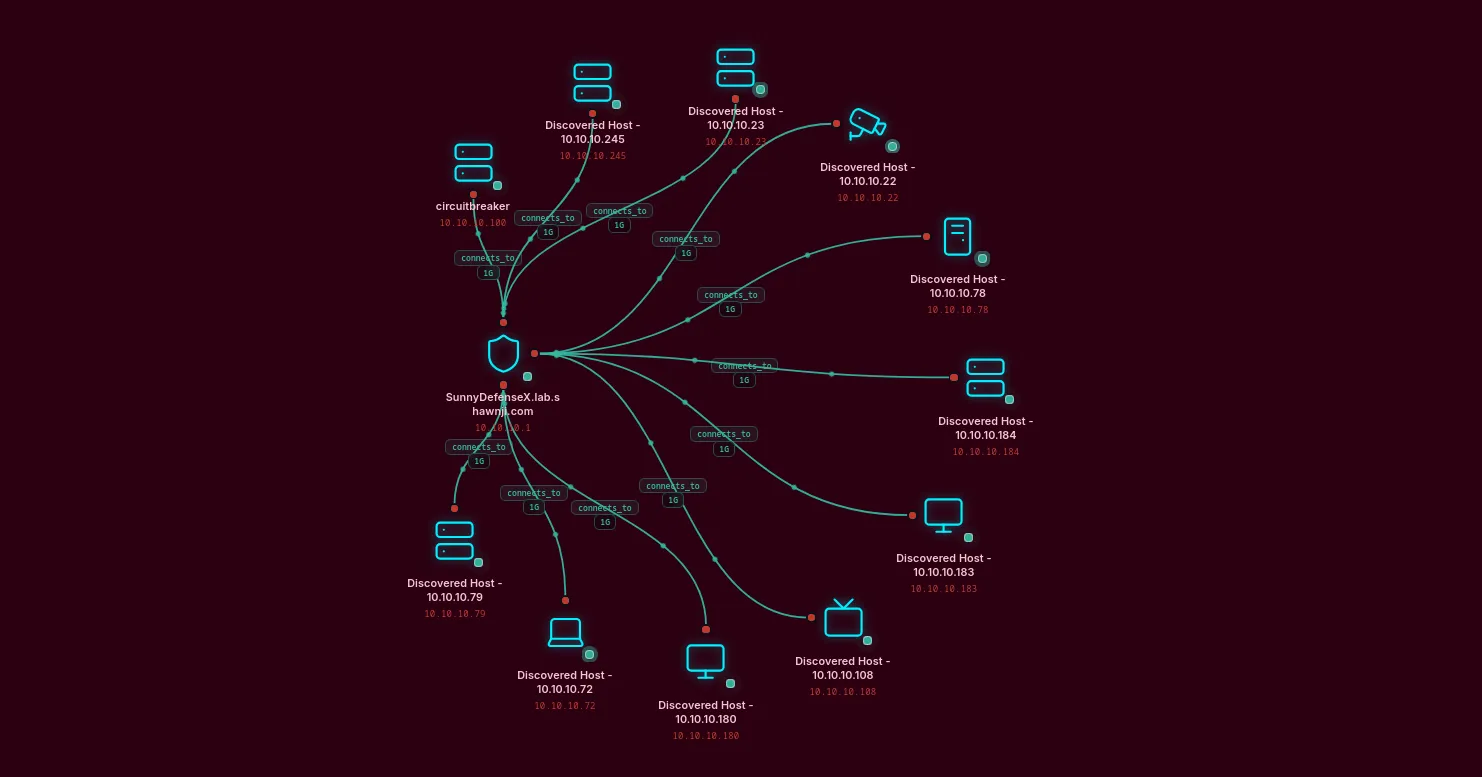

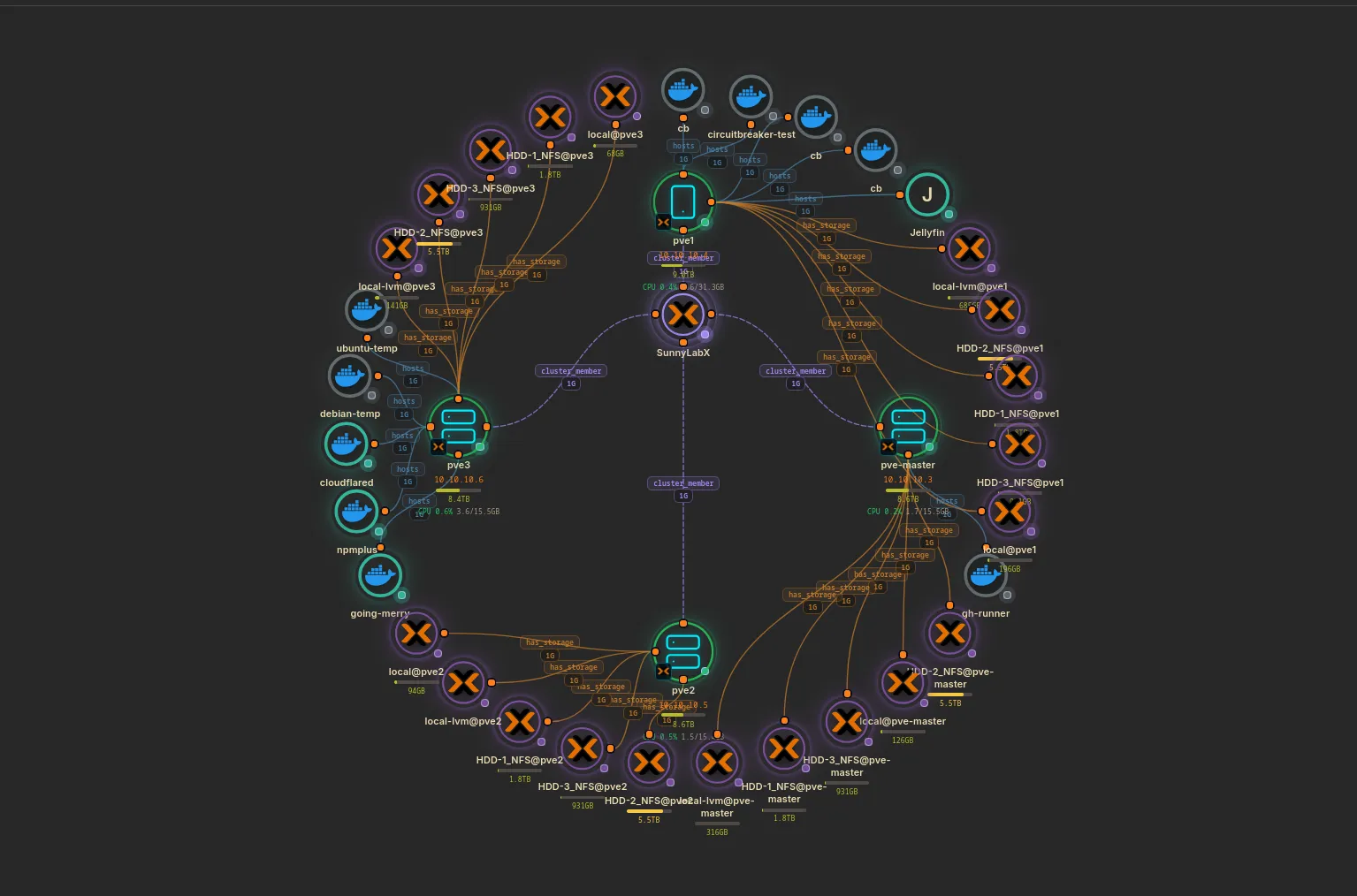

🌐 Network Topology Import

Discovered devices no longer arrive as an unconnected cloud of nodes. Circuit Breaker now:

• Infers primary nodes from IP address heuristics (gateway/lowest-host detection)
• Assigns roles at the review queue — the device’s position in the inferred hierarchy sets its initial topology role (router, switch, endpoint)
• Imports with default relationships — discovered peers are linked automatically when LLDP or ARP data confirms adjacency
• Defaults to Tree layout for network-scan imports — produces a readable hierarchy rather than a force-directed hairball on first load
• Persists ad hoc connections — manually drawn edges survive re-sync, reaching near-parity with the Proxmox import experience

---

🔗 LLDP Physical Topology

Switches and routers that advertise LLDP now surface their neighbor table in the scan results. Port-level adjacency data is stored and feeds directly into the automatic relationship import, giving you a physical wiring map without manual edge drawing.

---

🔧 OPNsense Integration (Foundation)

The groundwork for OPNsense integration is in place. Circuit Breaker can now store OPNsense connection credentials and will use a read-only API user to enrich scans with DHCP lease and ARP table data — surfacing hostnames and IPs that nmap alone would miss. Full active polling will be wired in a follow-up release.

---

🖧 Hardware Connection Mapping

Physical port topology is now first-class:

• Hardware entities track connection ports (interface names, types, speeds)
• Peer connections carry a connection type (copper, fibre, DAC, etc.)
• A hardware placeholder flag lets you pre-populate a device in the topology before the physical hardware arrives — useful for planned racks and pre-staged diagrams
• A device roles table (DB-backed) replaces the hardcoded role enum, making roles user-extensible without a code change

---

🐛 Bug Fixes

• Fixed Proxmox integration failing to connect when the host is configured with an FQDN or HTTPS rather than a bare IP
• Fixed nginx SSL termination on fresh installs under certain certificate configurations
• Fixed migration reruns throwing duplicate-table errors on existing installations
• Fixed silent failures in several frontend async paths that were swallowing errors without surfacing them to the user

---

⬆️ Upgrading

No manual steps required. All schema changes are additive and run automatically on startup.

docker compose pull && docker compose up -d

Native install:

curl -fsSL https://raw.githubusercontent.com/BlkLeg/circuitbreaker/main/install.sh | bash -s -- --upgrade

Note for ARP scanning users: ARP scanning is now disabled by default. If you rely on it, re-enable it after upgrading in Settings → Discovery → ARP Scanning.

---

📦 Docker

# Pull latest
docker compose pull && docker compose up -d

Image: ghcr.io/blkleg/circuitbreaker:v0.3.0 Digest: (populated automatically by GitHub Actions on publish)

---

What’s Coming in v0.4.0

• Rack Editor Phase 2 — cable management, rear view toggle, PNG/PDF export
• OPNsense active polling — live DHCP/ARP enrichment fully wired
• LLDP topology UI — visualize port-level adjacency directly on the map
• Device roles management — UI to create, rename, and reorder roles
• Proxmox observability — sync/poll health surfaced in the Proxmox integration tab

---

⚠️ Beta Notice — Circuit Breaker has not yet undergone a full security audit. Run it on a trusted local network only. Do not expose it directly to the public internet.

Full changelog: v0.2.8...v0.3.0
